Introducing the Phibian

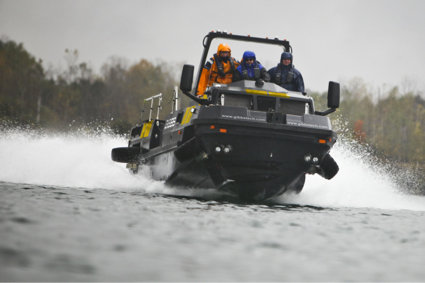

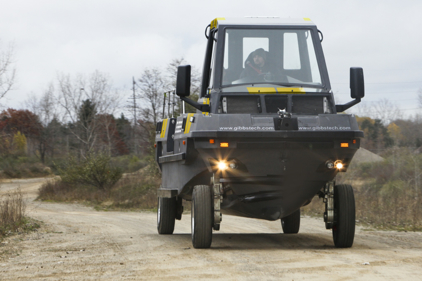

Phibian is the largest wheeled High Speed Amphibian (HSA), ever created. Capable of highway speeds on land and in excess of 30mph on water, the Phibian enables excellent marine, highway and offroad performance. It is also able to carry 1500kg of cargo or 15 passengers. Designed as the platform of the future for many amphibious purposes including for first responders and rescue.

PHIBIAN SPECIFICATIONS

Engine / Propulsion Suspension

Type:
twin turbo diesels (land) with twin jet drives (water)
Horsepower (hp / kW): 500 / 368
Water speed (mph):
more than 30

Coil over springs and dampers
Drive layout (land):
FWD or RWD, selectable 4WD
Steering type:
power-assisted hydraulic
Brake Type:
hydraulically operated disc brake

Wheels and Tires Dimensions
275 / 80R20 MPT
Dimensions (ft/mm):
Overall length: 30.22 / 9212
Overall width: 8.3 / 2532
Overall height: 11.98 / 3654
Track width: 6.95 / 2120
Wheelbase: 20.63 / 6289
Transition:
Approach angle (degrees): 30
Departure angle (degrees): 28
Ground clearance:
16 in / 353 mm

Capacities
Occupants:
three crew, 12 people
Curb weight (lb / kg): 4500 base
Payload (lb / kg):
3307 / 1500
